samyang TRIREX Polycarbonates for Medical & Healthcare Applications.用于医疗用PC的 TRIREX耐化学性、尺寸稳定性优秀，具有卓越的热稳定性，取得了ISO10993生物合成认证。可适用于医疗器械外包装材料的材质,具有对消毒剂及清洁剂较好的耐化学性,同时拥有多种颜色、阻燃、高冲击性。
15366296797
samyang TRIREX Polycarbonates for Medical & Healthcare Applications
用于医疗用PC的 TRIREX耐化学性、尺寸稳定性优秀，具有卓越的热稳定性，取得了ISO10993生物合成认证。

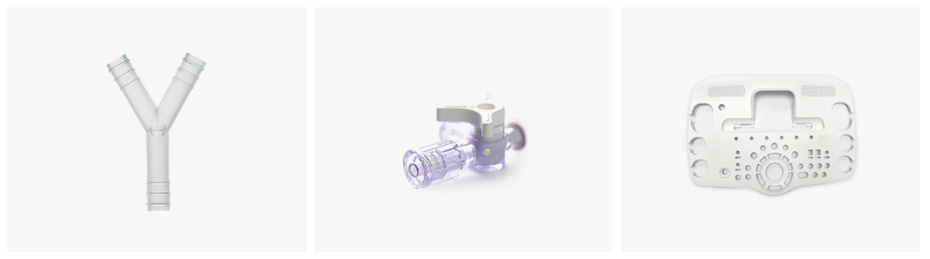

可适用于医疗器械外包装材料的材质,具有对消毒剂及清洁剂较好的耐化学性,同时拥有多种颜色、阻燃、高冲击性。

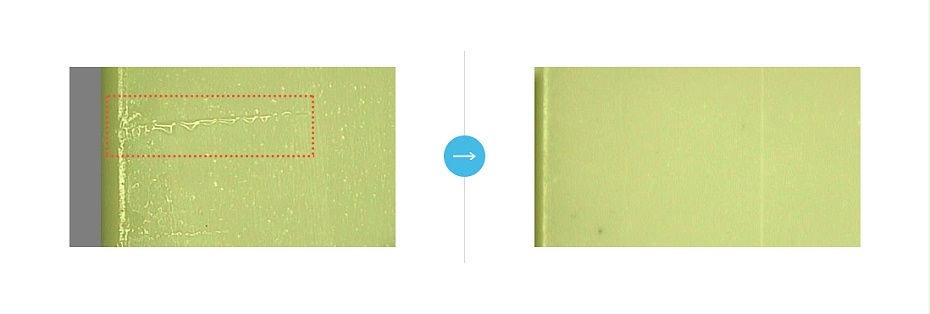

◆优秀的耐化学性
◆耐高冲击
◆卓越的热稳定性
| Grade | Features |
| 3020FD | Food + ISO 10993 + USP Class VI |
| 3022FD | Food + USP Class VI + ISO 10993 |
| 3025FD | Food + USP Class VI + ISO 10993 |
| 3020MD | ISO 10993 + Food + USP Class VI + Anti-Radiation |
| 3022MD | ISO 10993 + Food + USP Class VI + Anti-Radiation |
| 3025MD | ISO 10993 + Food + USP Class VI + Anti-Radiation |
| SC4-3022PN1 |
•ISO 10993 + Chemical Resistance •Siloxane PC ◆Excellent Chemical Resistance. ◆Inherent Strength (Less than -60C, ductility) ◆Increased Flowability in Compounded material |
| PROPERTY | UNIT | ASTM METHOD | 3020MD | 3022MD | 3025MD | |
| Specific Gravity | - | D792 | 1.2 | 1.2 | 1.2 | |
| Melt Flow Rate (300℃, 1.2kg) | g/10min | D1238 | 23 | 14 | 7 | |
| Tensile Strength at yield | kgf/cm² | D638 | 640 | 640 | 640 | |
| Tensile Elongation at break | % | D638 | 90 | 90 | 90 | |
| Flexural Strength | kgf/cm² | D790 | 920 | 920 | 920 | |
| Flexural Modulus | kgf/cm² | D790 | 21,000 | 21,000 | 21,000 | |
| Izod Impact, notched, 23℃(1/8") | kgf.cm/cm | D256 | 75 | 80 | 85 | |
| HDT, 18.6 kgf/cm² | ℃ | D648 | 125 | 125 | 125 | |
|
Transmittance （Gamma ray 5oKGy） At 3mm |
Non-Exposure | % | D1003 | 89 | 89 | 89 |
| After Exposure | 87 | 87 | 87 | |||
|
Haze （Gamma ray 5oKGy） At 3mm |
Non-Exposure | % | D1003 | 0.85 | 0.85 | 0.85 |
| After Exposure | 0.85 | 0.85 | 0.85 | |||
|
Transmittance （E-Beam 50KGy） At 3mm |
Non-Exposure | % | D1003 | 89 | 89 | 89 |
| After Exposure | 86.5 | 86.5 | 86.5 | |||
|
Haze （E-Beam 50KGy） At 3mm |
Non-Exposure | % | D1003 | 0.85 | 0.85 | 0.85 |
| After Exposure | 0.85 | 0.85 | 0.85 | |||
